Pro-Tec Equipment offers a few different types of Aluminum trench shield (trench box) systems. The ATS Series is a lightweight trench shield (trench box) system designed to be used by rubber-tired backhoes and loaders. The Steel Framed Aluminum Trench Shield combines the best of a steel trench box and an aluminum trench box into one. The MOD Series is lightweight and strong but it is also modular, where even the largest modular panel is designed to be easily transported by pickup truck, if desired.
Aluminum Trench Shield (ATS) Series
Aluminum Trench Shields Series
The Pro-Tec Equipment Aluminum Trench Shield (ATS) Series is a lightweight trench shield system designed to be used by rubber-tired backhoes and loaders. The ATS is ideal for municipalities and utility contractors.
Standard features
- Industry’s first standard 4-point lift system
- Smooth wall panel design
- Foam filling – prevents soil and water buildup
- Accepts telescoping spreaders (TS4 Spreaders)
- Flat bottom
- Professional Engineer Certified to meet or exceed O.S.H.A. requirements
ATS Series options
- Adapters to allow use of L-Class (4”) or M-Class (5”) spreaders pipe
- Aluminum built-in knife edge
- Steel bolt-on knife edge
- Cutout and replaceable doors
- Stacking pockets
- Wheel kits
- Custom sizes
Height x Length | Model | Pipe Clearance | Weight** | Shield Capacity* | Depth of Cut* B-Soils | Depth of Cut* C-60 Soils | Depth of Cut* C-80 Soils |
---|---|---|---|---|---|---|---|
ft | in | lbs | psf | ft | ft | ft | |
4 x 6 | ATS-46 | 12 | 420 | 1260 | 27 | 21 | 16 |
4 x 8 | ATS-48 | 12 | 510 | 1470 | 33 | 25 | 18 |
4 x 10 | ATS-410 | 12 | 600 | 780 | 17 | 13 | 10 |
4 x 12 | ATS-412 | 12 | 700 | 660 | 14 | 11 | 9 |
4 x 16 | ATS-416 | 12 | 880 | 421 | 9 | 7 | 5 |
6 x 6 | ATS-66 | 30 | 600 | 1260 | 27 | 21 | 17 |
6 x 8 | ATS-68 | 30 | 730 | 960 | 20 | 16 | 13 |
6 x 10 | ATS-610 | 30 | 870 | 780 | 16 | 13 | 11 |
6 x 12 | ATS-612 | 30 | 1010 | 660 | 14 | 11 | 9 |
6 x 14 | ATS-614 | 30 | 1140 | 540 | 11 | 9 | 8 |
8 x 6 | ATS-86 | 30 | 780 | 1260 | 27 | 21 | 17 |
8 x 8 | ATS-88 | 30 | 960 | 960 | 20 | 16 | 13 |
8 x 10 | ATS-810 | 30 | 1140 | 780 | 16 | 13 | 11 |
8 x 12 | ATS-812 | 30 | 1320 | 660 | 13 | 11 | 9 |
8 x 14 | ATS-814 | 30 | 1500 | 540 | 10 | 9 | 7 |
8 x 16 | ATS-816 | 30 | 1700 | 420 | 8 | 7 | 6 |
Model (sets of 4) | Adjustment | Weight |
---|---|---|
in | lbs | |
TS 4-1826 | 18 – 26 | 108 |
TS 4-2334 | 23 – 34 | 128 |
TS 4-2844 | 28 – 44 | 153 |
TS 4-3454 | 34 – 54 | 183 |
TS 4-4266 | 42 – 66 | 223 |
TS 4-5288 | 52 – 88 | 273 |
4AEX – 4″ Aluminum Trench Shield
4AEX – 4″ Thick Aluminum Trench Shield
The 4AEX is a rugged, 4″ wall shield that comes standard with a tough, top cap and rugged aluminum knife edge. Massive, extruded end members insure strength while with its aluminum body, the 4AEX can be handled by today’s lighter excavators, allowing you to match your equipment to the proper machine.
Standard features
- Rugged collar adapters for 5″ pipe spreaders
- Built-in lifting eyes
- Standard lengths to 20 feet
- Certified by a registered professional engineer to meet OSHA standards
- Stacking pockets
Model | Height x Length | Pipe Clearance | Weight | Shield Capacity* | Depth of Cut* B-Soils | Depth of Cut* C-60 Soils | Depth of Cut* C-80 Soils |
---|---|---|---|---|---|---|---|
model | ft | in | lbs | psf | ft | ft | ft |
4AEX-68 | 6 x 8 | 36 | 1438 | 2820 | 66 | 50 | 37 |
4AEX-610 | 6 x 10 | 36 | 1708 | 1680 | 41 | 31 | 23 |
4AEX-612 | 6 x 12 | 36 | 2050 | 1080 | 28 | 21 | 16 |
4AEX-614 | 6 x 14 | 36 | 2301 | 780 | 20 | 16 | 10 |
4AEX-616 | 6 x 16 | 36 | 2539 | 540 | 15 | 12 | 9 |
4AEX-88 | 8 x 8 | 48 | 1736 | 1620 | 39 | 30 | 23 |
4AEX-810 | 8 x 10 | 48 | 2195 | 1260 | 31 | 24 | 18 |
4AEX-812 | 8 x 12 | 48 | 2631 | 1020 | 26 | 20 | 15 |
4AEX-814 | 8 x 14 | 48 | 2937 | 780 | 20 | 16 | 10 |
4AEX-816 | 8 x 16 | 48 | 3197 | 540 | 15 | 12 | 9 |

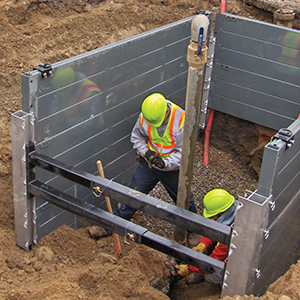

Modular Aluminum Trench Shield (MOD) Series
Modular Aluminum Trench Shield
The Pro-Tec Equipment MOD Series is a modular aluminum trench shield system that is lightweight and easily transported via pickup truck. It can be used as a 2-, 3- or 4-sided system with existing components and can be changed on the fly at a job site to meet the job’s requirements.
Standard features
- Smooth wall panel design
- Foam filling – prevents soil and water buildup
- Accepts telescoping spreaders (TS4 Spreaders)
- 2-way corner posts allow, 2-, 3- or 4-sided configurations
- Professional Engineer Certified to meet or exceed O.S.H.A. requirements
Options
- Aluminum built-in knife edge
- Steel bolt-on knife edge
- Wheel kits
- Adjustable legs
- Lifting eyes
- Stacking units
- Custom sizes
Bottom panels can be omitted
Enabling use around existing pipes and utilities
The Pro-Tec Equipment MOD Series features the ability of being able to omit its bottom panels, enabling use of the MOD Series on projects that involve T-connections and/or crossing utilities, when soil conditions permit (refer to tabulated data).
Width x Length | Weight | Max. Depth of Cut B Soils | Max. Depth of Cut C-60 Soils | Max. Depth of Cut C-80 Soils |
---|---|---|---|---|
ft | lbs | ft | ft | ft |
MPS 2 x 3 | 38 | 50 | 50 | 42 |
MPS 2 x 4 | 49 | 50 | 42 | 32 |
MPS 2 x 6 | 70 | 38 | 28 | 20 |
MPS 2 x 8 | 92 | 28 | 21 | 16 |
MPS 2 x 10 | 113 | 23 | 17 | 13 |
MPS 2 x 12 | 135 | 19 | 14 | 11 |
MPS 2 x 14 | 156 | 12 | 9 | 7 |
Model | Description | Length | Weight |
---|---|---|---|
in | lbs | ||
MC-24 | Two way post | 24 | 19 |
MC-48 | Two way post | 48 | 38 |
MC-72 | Two way post | 72 | 56 |
MC-96 | Two way post | 96 | 75 |
MC-120 | Two way post | 120 | 94 |
MC3-24 | Three way post | 24 | 25 |
MC3-48 | Three way post | 48 | 51 |
MC3-72 | Three way post | 72 | 76 |
MC3-96 | Three way post | 96 | 101 |
MC3-120 | Three way post | 120 | 127 |
MC4-24 | Four way post | 24 | 33 |
MC4-48 | Four way post | 48 | 66 |
MC4-72 | Four way post | 72 | 100 |
MC4-96 | Four way post | 96 | 132 |
MC4-120 | Four way post | 120 | 170 |
MOD Sheeting Guide Mod Sheeting Guide System
MOD Sheeting Guide
Mod Sheeting Guide System
Designed to provide crews with a safe working environment, while dealing with crossing and existing utilities, the MOD Sheeting Guide System also allows for the use of rubber-tired backhoes.
A component aluminum trench shield, built off of the MOD Series, the MOD Sheeting Guide System incorporates aluminum sheet pile, sheet stoppers, and corner post to provide crews with the safe working environment they require.
Specially designed steel corner posts, used in conjunction with the MOD Sheeting Guide Panels allow up to 4′ of clearance from the bottom of the panel to the bottom of the excavation. Meaning a two foot tall post and MOD Sheeting Guide panel can provide six feet of protection!
This unique, versatile, aluminum trench box system can be used in 2-, 3-, and 4-sided configurations.
Standard Features:
- Smooth wall panel design 6061-T6 aluminum construction
- Panel lengths from 8′ to 14′
- Standard MOD System Spreader can be used in 2-, and 3-sided configuration
- Standard MOD System panels can be used in conjunction with Sheeting Guide panels
- Professional Engineer Certified to meet or exceed O.S.H.A. requirements
Panel Width | Panel Length | Max Clearance | PSF | Depth Rating B-45 | Depth Rating C-60 | Depth Rating C-80 |
---|---|---|---|---|---|---|
ft | ft | ft | psf | ft | ft | ft |
8 | 8 | 4 | 540 | 15 | 12 | 10 |
8 | 8 | 3 | 1020 | 26 | 20 | 16 |
8 | 10 | 4 | 540 | 15 | 12 | 10 |
8 | 10 | 3 | 840 | 22 | 17 | 14 |
8 | 12 | 4 | 540 | 15 | 12 | 10 |
8 | 12 | 3 | 660 | 18 | 14 | 11 |
8 | 14 | 4 | 540 | 15 | 12 | 10 |
8 | 14 | 3 | 540 | 15 | 12 | 10 |
10 | 10 | 4 | 540 | 15 | 12 | 10 |
10 | 10 | 3 | 660 | 18 | 14 | 11 |
10 | 12 | 4 | 540 | 15 | 12 | 10 |
10 | 12 | 3 | 660 | 18 | 14 | 11 |
10 | 14 | 4 | 540 | 15 | 12 | 10 |
10 | 14 | 3 | 540 | 15 | 12 | 10 |
12 | 12 | 4 | 540 | 15 | 12 | 10 |
12 | 12 | 3 | 660 | 18 | 14 | 11 |
12 | 14 | 4 | 540 | 15 | 12 | 10 |
12 | 14 | 3 | 540 | 15 | 12 | 10 |
14 | 14 | 4 | 360 | 11 | 9 | 8 |
14 | 14 | 3 | 540 | 15 | 12 | 10 |
MOD Assembly
Quick and Easy Assembly
Lightweight 2-foot high aluminum panels are easily unloaded from a pickup truck by hand without the use of machines. No lifting is equipment needed.
Step One
To begin assembling the shield, two corner end-posts are pinned to side panels and rear panel.
Step Two
Side and rear panels are stacked to desired height.
Step Three
Corner end-posts are pinned in place.
Step Four
Adjustable spreaders pin securely in place to complete a 3-sided shield.
Step Five – final step
Mod Series trench shields (trench boxes) are easily handled by a rubber-tired backhoe loader.
Steel Framed Aluminum Trench Shield
Steel Framed Aluminum Trench Box
Combining the best of steel trench boxes and aluminum trench shields, the Steel Framed Aluminum Trench Shield enables smaller machines (rubber tired backhoes, small excavators) to be used by contractors, municipalities, utility companies, and anyone operating smaller machines, yet requiring a strong, durable trench box.
The Steel Framed Aluminum Trench Shields from Pro-Tec Equipment are designed to use common, 5″ sch. 80 spreader pipe and are available in 4″ thick sidewalls.
Standard features
- Industry’s first standard 4-point lift system
- Smooth wall panel design
- Foam filling – prevents soil and water buildup
- Accepts common, 5″ Sch. 80 spreader pipe
- Flat bottom
- Professional Engineer Certified to meet or exceed O.S.H.A. requirements
Options
- Aluminum built-in knife edge
- Cutout and replaceable doors
- Stacking pockets
- Wheel kits
- Custom sizes
Height x Length | Model | Pipe Clearance | Weight** | Shield Capacity* | Depth of Cut* B-Soils | Depth of Cut* C-60 Soils | Depth of Cut* C-80 Soils |
---|---|---|---|---|---|---|---|
ft | in | lbs | psf | ft | ft | ft | |
4 x 6 | 4AEX-46SF | 24 | 1500 | 1800 | 40 | 30 | 23 |
4 x 8 | 4AEX-48SF | 24 | 1780 | 1800 | 40 | 30 | 23 |
4 x 10 | 4AEX-410SF | 24 | 2060 | 1800 | 40 | 30 | 23 |
4 x 16 | 4AEX-416SF | 24 | 2920 | 960 | 21 | 16 | 12 |
4 x 20 | 4AEX-420SF | 24 | 3520 | 600 | 13 | 10 | 8 |
6 x 6 | 4AEX-66SF | 36 | 1970 | 1800 | 40 | 30 | 23 |
6 x 12 | 4AEX-612SF | 36 | 2950 | 1440 | 32 | 24 | 18 |
6 x 16 | 4AEX-616SF | 36 | 3680 | 960 | 21 | 16 | 12 |
6 x 20 | 4AEX-620SF | 36 | 4400 | 600 | 13 | 10 | 8 |
8 x 8 | 4AEX-88SF | 48 | 2900 | 1800 | 40 | 30 | 23 |
8 x 10 | 4AEX-810SF | 48 | 3320 | 1800 | 40 | 30 | 23 |
8 x 16 | 4AEX-816SF | 48 | 4300 | 960 | 21 | 16 | 12 |
8 x 20 | 4AEX-820SF | 48 | 5380 | 600 | 13 | 10 | 8 |
Quad Strut
The Quad Strut
The Quad Strut is a patent pending, multiple phase tube strut that enables rental locations to maximize fleet utilization by taking the place of three spreader set sizes, with one!
Additionally, the Quad Strut is designed to be used as an end-loadable strut Aluminum Trench Shields, providing an adjustable strut that is able to go from 36” to 96” (.9m to 2.4m)! Each Quad Strut weighs 160 pounds (72 kg) and includes all pins and keepers. Now the Quad Strut is able to used on the MOD Series, further increasing both the MOD Series and Quad Struts versatility!
Aluminum Sheeting Guide The ASG System
Aluminum Sheeting Guide
The ASG System
Designed to provide crews with a safe working environment, while dealing with crossing and existing utilities, the Aluminum Sheeting Guide (ASG) System also allows for the use of rubber-tired backhoes.
A component aluminum trench shield, similar to the Mod Series, the ASG system incorporates aluminum sheet pile, sheet stoppers, spreaders, corner post and support post (which double as a way to attach the Pro-Tec Equipment Guard Rail system), to provide crews with the safe working environment they require.
This unique, versatile, aluminum trench box system can be used in 2-, 3-, and 4-sided configurations.
Standard Features:
- Smooth wall panel design 6061-T6 aluminum construction
- Panel lengths of 8′ and 10′ depth rating of 10′ in C-60 Soils
- 60″ of vertical pipe clearance with no sheeting embedment
- 96″ of vertical pipe clearance with 24″ of sheeting embedment
- Professional Engineer Certified to meet or exceed O.S.H.A. requirements
