Dirt Sifter

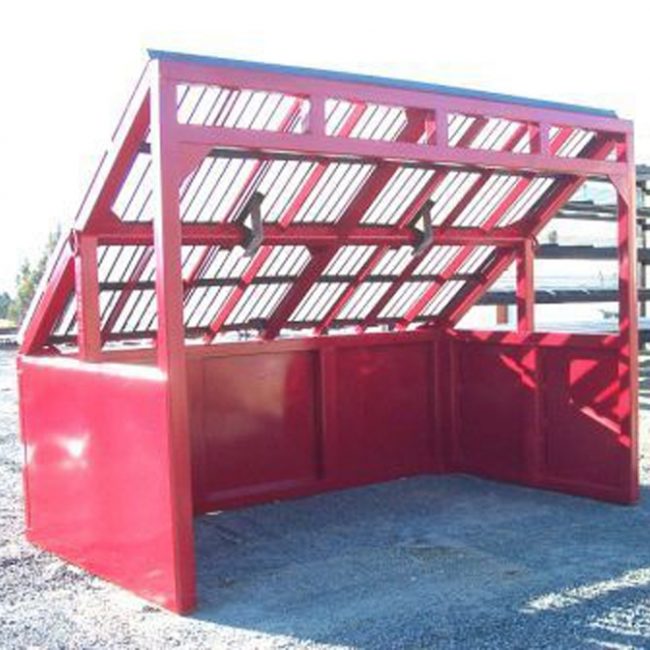

Pro-Tec Equipment's dirt sifter is designed to serve as your main source for sifting backfill. With wire screens from 1” to 4” for sifting light back fill, to heavy-duty bar screens up to 6” to filter out larger boulders, the Pro-Tec Equipment dirt sifter can be used on the job site or in the yard. With high back bar clearance to allow front loaders easy access to the sifted material, along with a rugged steel construction and workmanship that is standard on all of Pro-Tec Equipment's steel products, the dirt sifter is a valuable asset to anyone's operation.
Sifter and Frame Your main source for sifting backfill

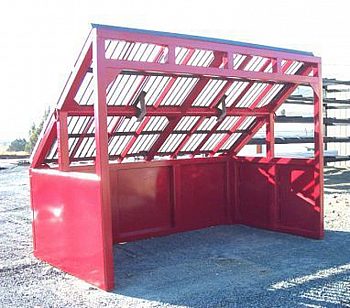

Sifter and Frame
Pro-Tec Equipment's dirt sifter is designed to serve as your main source for sifting backfill. With wire screens from 1” to 4” for sifting light back fill, to heavy-duty bar screens up to 6” to filter out larger boulders, the Pro-Tec Equipment dirt sifter can be used on the job site or in the yard. With high back bar clearance to allow front loaders easy access to the sifted material, along with a rugged steel construction and workmanship that is standard on all of Pro-Tec Equipment's steel products, the dirt sifter is a valuable asset to anyone's operation.
Featuring:
- Two frame sizes - 9' & 12' long
- Wire screens with openings from 1" to 4"
- Heavy-duty bar screens from 3" to 6"
- High back bar clearance for easy access to sifted material
| Length | Width | Model | Weight |
|---|---|---|---|
| in | in | lbs | |
| 108 | 94 | DS-9 | 2,000 |
| 144 | 90 | DS-12 | 2,700 |

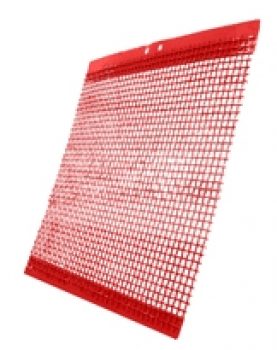

Wire Screen
Wire Screen
The wire screens for the DS-9 come in three sizes of screen opening: 2", 3" and 4". The wire screens for the DS-12 come in 4 sizes of screen opening: 1", 2", 3" and 4". Wire diameters vary for each.
| Length | Width | Model | Weight | Screen open size | Wire Diameter |
|---|---|---|---|---|---|
| in | in | lbs | in | in | |
| 98 | 96 | DS-9-4 | 425 | 4 | 0.625 |
| 98 | 96 | DS-9-3 | 510 | 3 | 0.625 |
| 98 | 96 | DS-9-2 | 480 | 2 | 0.5 |
| Length | Width | Model | Weight | Screen open size | Wire Diameter |
|---|---|---|---|---|---|
| in | in | lbs | in | in | |
| 144 | 96 | DS-12-4 | 560 | 4 | 0.625 |
| 144 | 96 | DS-12-3 | 710 | 3 | 0.625 |
| 144 | 96 | DS-12-2 | 660 | 2 | 0.5 |
| 144 | 96 | DS-12-1 | 670 | 1 | 0.375 |

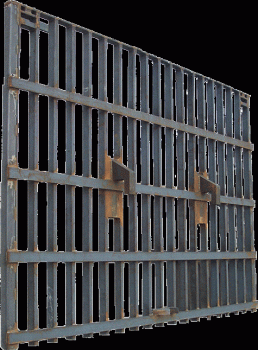

Heavy Duty Bar Screen
Heavy Duty Bar Screen
The heavy duty bar screens for the DS-9 come in 3 sizes of screen opening: 3", 4" and 6". The wire screens for the DS-12 also come in 3", 4", and 6" screen openings. Wire diameters vary. See the accompanying tables for details.
| Length | Width | Model | Weight | Screen Open Size | Wire Diameter |
|---|---|---|---|---|---|
| in | in | lbs | in | in | |
| 108 | 96 | HDDS-9-6 | 1,690 | 6 | 1.5 |
| 108 | 96 | HDDS-9-4 | 1,450 | 4 | 0.75 |
| 108 | 96 | HDDS-9-3 | 1,690 | 3 | 0.75 |
| Length | Width | Model | Weight | Screen Open Size | Wire Diameter |
|---|---|---|---|---|---|
| in | in | lbs | in | in | |
| 144 | 98 | HDDS-12-6 | 2,515 | 6 | 1.5 |
| 144 | 98 | HDDS-12-4 | 1,920 | 4 | 0.75 |
| 144 | 98 | HDDS-12-3 | 2,515 | 3 | 0.75 |
